Shock Absorber Tubes (Welded)
DIN2393/2394 Shock Absorbor Welded Steel Tube
We're professional din2393/2394 shock absorbor welded steel tube manufacturers and suppliers in China, specialized in providing customized service with competitive price.
Shock Absorbers Tubes
We're professional shock absorbers tubes manufacturers and suppliers in China, specialized in providing customized service with competitive price.
Materials & Standards
DIN 2394EN 10305
- Manufactured to customer drawing
- Prototype and serial production
- Material certificates on request

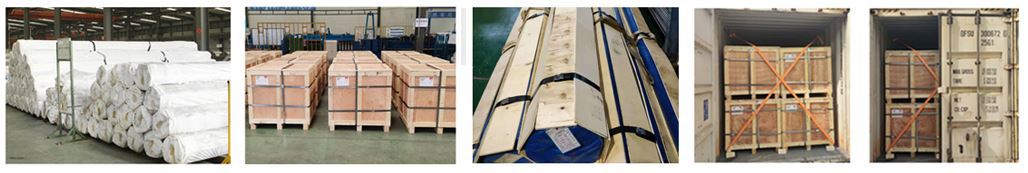

- Export packaging available
- Category
- Precision Steel Tubes
- Item Reference
- FG-0028
- Production
- Made to order
- Photos
- 6
Product description
We're professional shock absorbers tubes manufacturers and suppliers in China, specialized in providing customized service with competitive price. We warmly welcome you to wholesale high quality shock absorbers tubes made in China here and get quotation from our factory. Hebei Fugang Automotive Parts Co., Ltd. is one of the reliable manufacturers and suppliers in China. As a specialized factory, we focus on manufacturing shock absorbers tubes with consistent quality, competitive pricing, and reliable supply for global markets. Shock Absorbers Tubes Standard: JIS G 3445,DIN 2394,EN 10305-2,EN 10305-3 Grade: STKM12B, STKM13A, ST37-2, ST52.3, E195, E235, E355 etc.OD: 22-82MMThickness: 1.0-3.0MM Surface treatment: Oiled Delivery conditions: Cold rolled,Cold drawn Application: Shock Absorbers Product Description
Key specifications
Values below are typical for this item and can be adapted to your drawing.
| Inspection items | Technical requirement | Measuring instrument |
|---|---|---|
| Material grade | E235 (S37-2) | acc. to E10305-2 |
Delivery condition · +BK
Tensile Strength (Rm) · ＞490MPa · Universal material tester
Elongation (A) · >6%
| Flattening test | 2/3D No crack on weld | T |
|---|---|---|
| Tube expansion test | 30% | T |
| Internal surface roughness | Ra0.4 | Roughness Tester |
| Tube seam weld strength test | MAX. 10 mm |
|---|---|

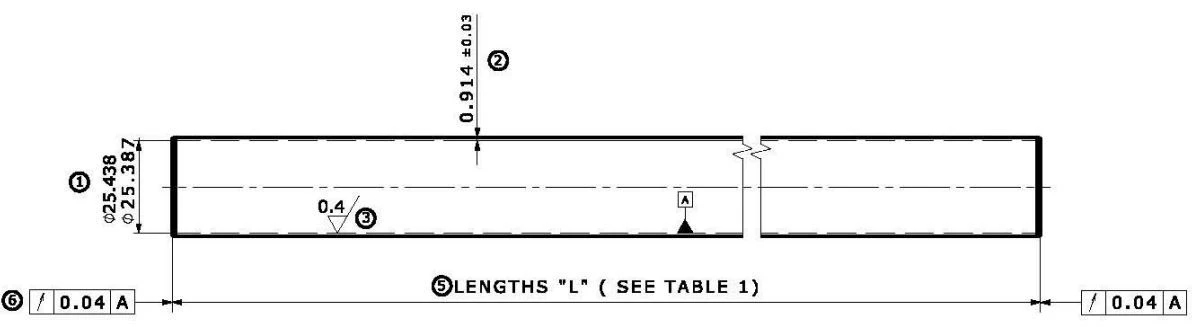

| Characteristic | Tolerances based on the requirements of EN10305-2 |
| ID diameter (D) | 25.387-25.438 |
| Thickness (T) | ±0.18mm |
| ID roundness | ±0.05 |
| Thickness tolerance | ±0.03 |
| Straightness | <0.5/1000 |
| Perpendicularity of cut tubes ends | Cut ends Perpendicularity of 0.7 mm MAX, concern one side only. The second side is perpendicularity as from the process. No burrs permitted internal or external on the entire circumference |
| The surface of the tubes | Per EN 10305-2 § 8.4.4 plus internal and external tube surface must be without any metal chips. |
Materials & standards
DIN 2394; EN 10305; EN10305
